Description

Programmable Hand Control

Is your Hand Control missing, damaged or simply not working any more? This control is manufactured specifically to function with the Midmark-Ritter® 411 (75L) Exam Table.

IMPORTANT: This part is not compatible with all Midmark-Ritter® 411 (75L) tables. You must check your model and serial numbers below before buying.

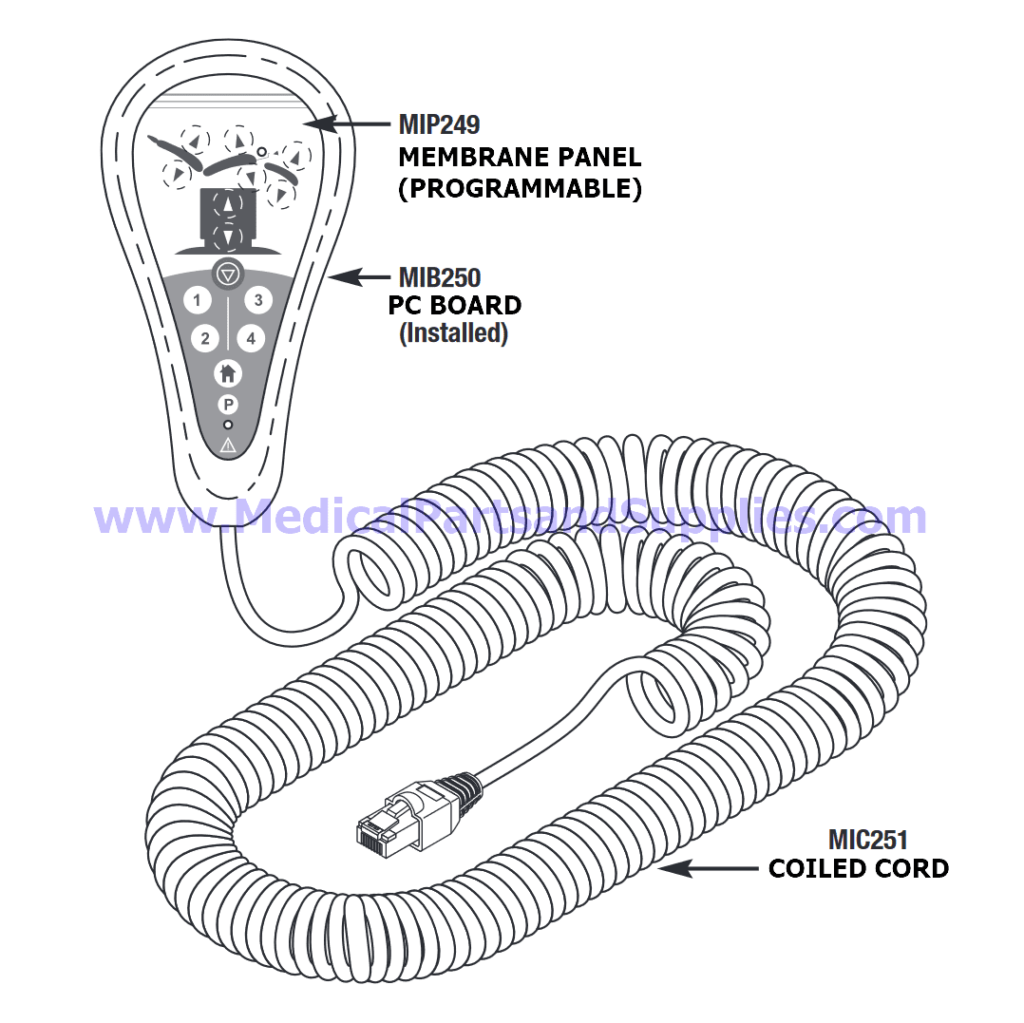

Includes:

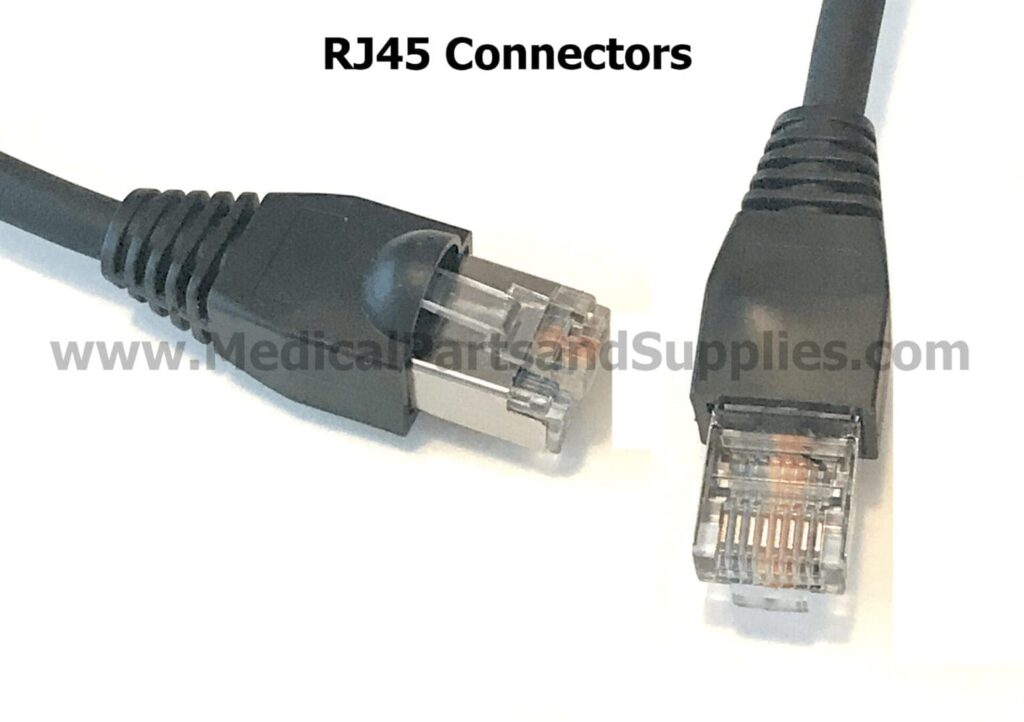

• Coiled Cord – Part MIC251

• Programmable Hand Control PC Board – Part MIB250

• Programmable Hand Control Membrane Panel – Part MIP249

Also Available:

There are 2 versions of each type of actuator available for this table. The type you need is determined by your model and serial number. See below.

• Hand Control Holster Kit – Part MIK252

• Non-Programmable Hand Control (Alternate Model/Serial Range) – Part MIC262

• Hand Control (Alternate Model/Serial Range) – Part MIC168

• Foot Actuator – Part MIA164

• Back Actuator – Part MIA164

• Base Actuator – Part MIA165

• Tilt Actuator – Part MIA165

• Foot Actuator – Part MIA215

• Back Actuator – Part MIA216

• Base Actuator – Part MIA217

• Tilt Actuator – Part MIA218

Fits Model and Serial Numbers Shown Here:

If this is not a fit for your table, try the part listed above for an alternate range.

Midmark-Ritter® exam tables have a main model number (411 in this case) and a sub-model extension. For example, model 411-011. You must check the main model number, the extension, and the serial number below to see if the part is a fit for your exam table. There is often a range of sub-models that it fits.

Models 411-011 thru 411-018

• Fits serial numbers with prefixes HZ, JY, and LS

Models 75L (411) -011 thru 75L (411) -018

• Fits serial numbers with prefixes HZ, JY, and LS

Models 411 (75L) -011 thru 411 (75L) -018

• Fits serial numbers with prefixes HZ, JY, and LS

Model Evolution 75-014

• Fits serial numbers with prefix HZ

Model Evolution 75-017

• Fits serial numbers with prefix JY
