Description

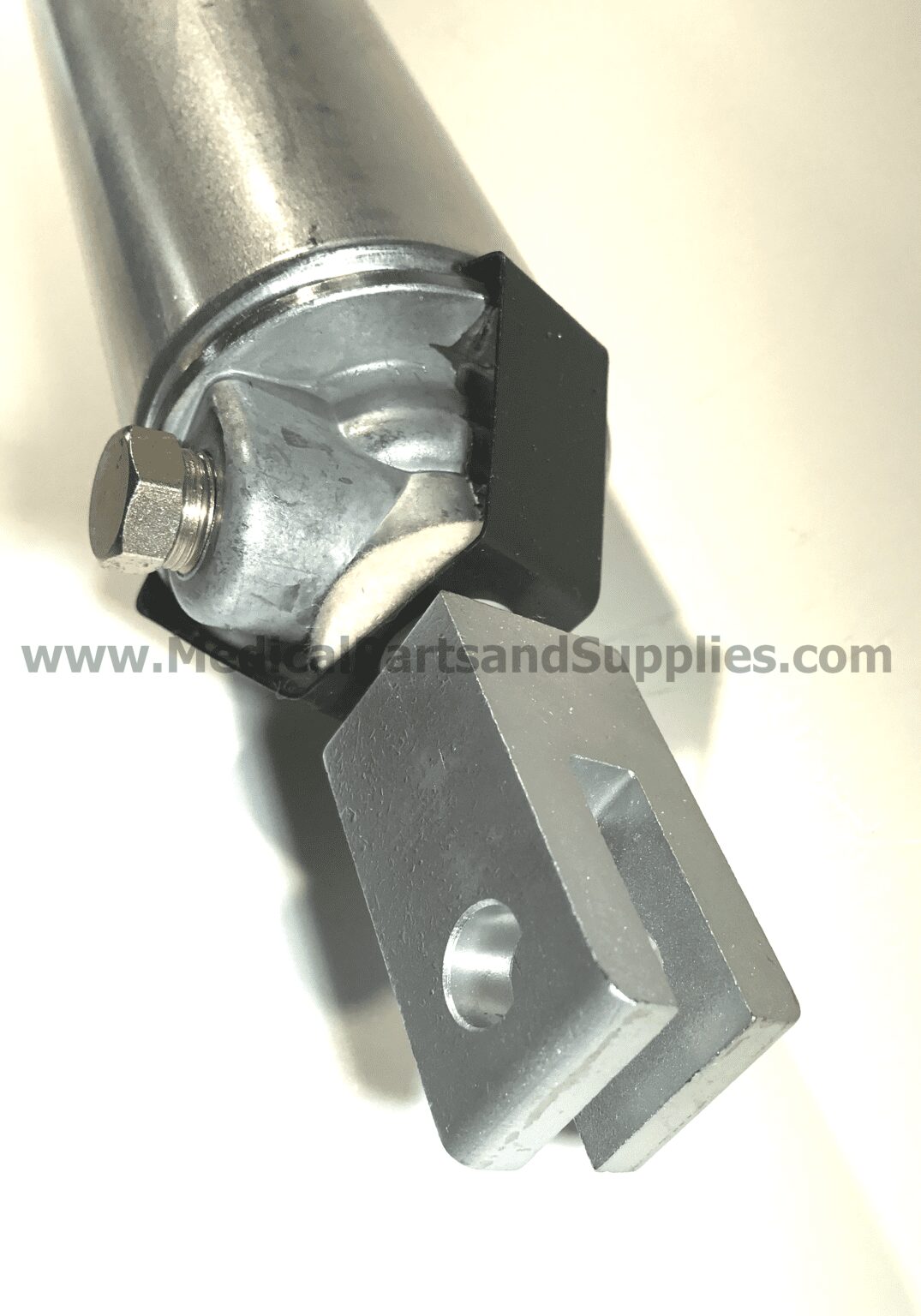

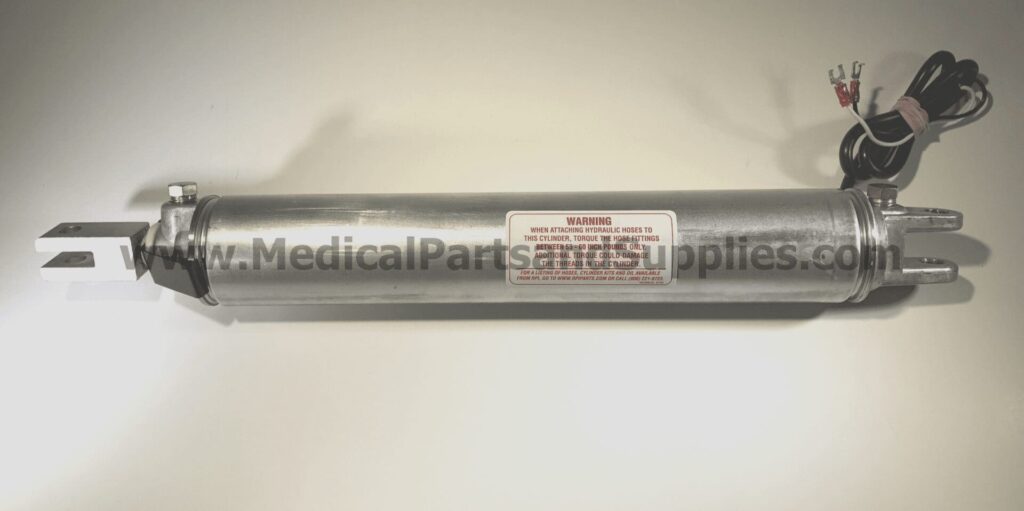

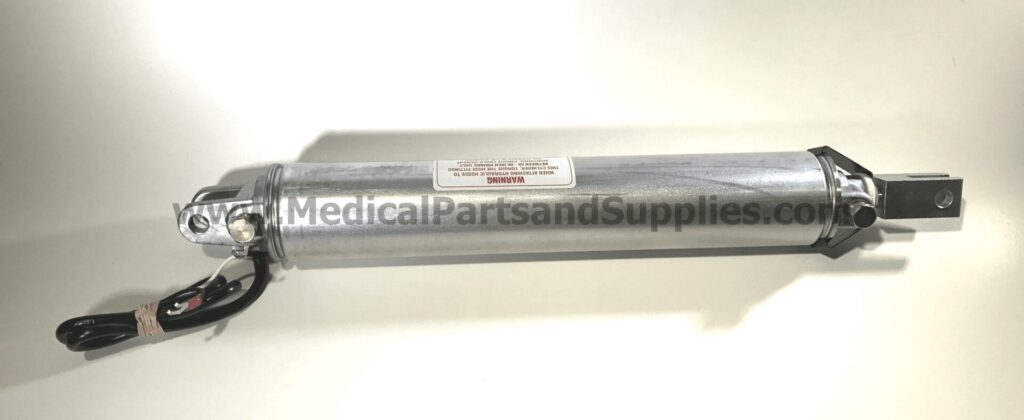

Base Cylinder Kit

Fits All Serial Numbers of the Midmark-Ritter® 113

• 2.13″ Outside Diameter ~16.25″ long – Center hole to center hole (retracted)

• Fits: Table base

When attaching hydraulic hoses to the cylinders, torque the hose fittings between (55 – 60 Inch Pounds only). Additional torque could damage the threads in the cylinders. When replacing hydraulic hoses, route hose exactly as the original was installed to avoid pinching, chaffing and premature wear. Remember to replace any removed clamps, cable ties and safety devices when installing new cylinders and hoses.

Includes:

• Cylinder

• (6) 12″ Black Cable Ties – Part RPT375

Also Available:

• Hydraulic Fluid – Part RPF384

• Tilt Cylinder Kit – Part MIC112

• Back Cylinder Kit – Part MIC065

• Foot Cylinder Kit – Part MIC065

This part fits all models listed below. Please navigate to or use the search box to find the part page for your specific model for details and important information.

Fits: 106, 110, 111, 112, 113, 114, 116, 117, 119, 306, 311, 317, 318, 319, Evolution 75
