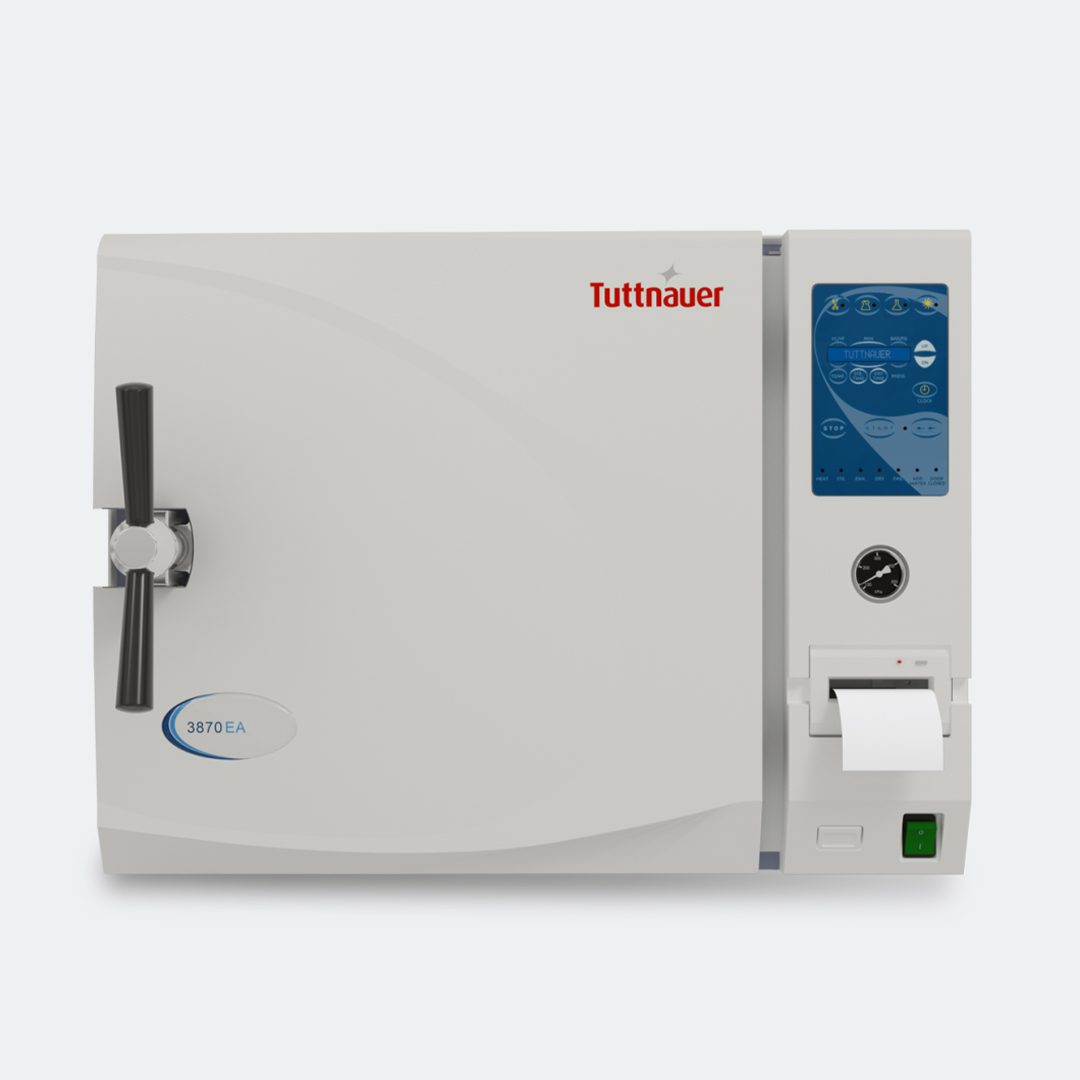

Tuttnauer 3870EAP Autoclave Sterilizer

The Tuttnauer 3870EAP has the capacity to meet the most demanding offices, the 3870EAP accommodates longer instruments or a large number of small instruments. The low maintenance manual autoclave is the ideal choice that fits all your needs.

$10,500.00$16,249.00

Description

3870EAP Automatic Sterilizer



The Tuttnauer 3870EAP autoclave is designed for the active surgery center, medical clinic, industrial lab, doctor’s office, dental practice, veterinary facility, or tattoo establishment. The stainless steel construction is ideal for sterilizing liquids, media, instruments, glassware, soil or waste products.

Each stage of the cycle is automatic and micro-processor controlled from water-fill, to sterilization, exhaust, and drying. The autoclave has a low water alarm to notify the end user when the reservoir needs to be refilled with water, an in-line particle filter protects the valves, and the standby heating is to keep the chamber warmed up in between cycles. The pressure and temperature gauge are combined plus an automatic low water shut off will prevent damage to the heating elements if there is insufficient water tp complete the sterilization cycle. The heat-insulated, double-locking door provides protection to the end user from accidental burns and stops the chamber from being opened during the sterilization procedure. The autoclave has a slow or quick exhaust choice, with the fast exhaust for drying solids, and the slow exhaust for preventing media and liquid blow over. the high enhanced closed-door drying cycle maintains sterility and removes extra moisture after sterilization. A continuous pressure purge removes air pockets and ensures even sterilization, and a large capacity reservoir provides plenty of water to avoid frequent refills (with the drain located on top for simplified cleaning). The autoclave also has an automatic shut-off for saving energy, and a battery backup ensures retention of settings and controls in the event of a power failure.

FEATURES

  • Four programmed cycles: Wrapped, Unwrapped, Liquids and Drying

  • Visual and audible cycle alerts

  • Continuous digital display showing temperature, pressure and elapsed time

  • Low water cut-off to prevent heating element burnout

  • Safety door automatically seals when pressurized and cannot open until depressurized

VOLUME / SPEED /POWER

  • 22 Gallon Chamber (83.3 Liters

  • Holds 2 Trays

  • Cycle Time: Varies based on items to be sterilized – Wrapped instruments 40-55 minutes

  • Temperature range: 250 degrees F – 274 degrees F (121C – 134C)

  • Unit Weight: 220 lbs (99.8 kg)

  • Electrical: 230 Volts, 3000 Watts, 50/60 Hz, 13 Amps

DIMENSIONS / WEIGHT

  • Overall Size:

    Width: 26″ (66 cm)

    Length: 34-1/2″ (87.6 cm)

    Height: 20-3/4″ (52.7 cm)

  • Chamber

    Diameter: 15″ (38.1 cm)

    Length: 30″ (76.2 cm)

  • Large Tray Size

    Width: 14″ (35.6 cm)

    Length: 26″ (66 cm)

    Height: 1″ (2.5 cm)

  • Small Tray Size

    Width: 11″ (27.9 cm)

    Length: 26″ (66 cm)

    Height: 1″ (2.5 cm)



Documents:

Additional information

Weight 278 lbs
Dimensions 35 × 26 × 31 in
Factory New or Refurbished

Factory New, Refurbished
