Description

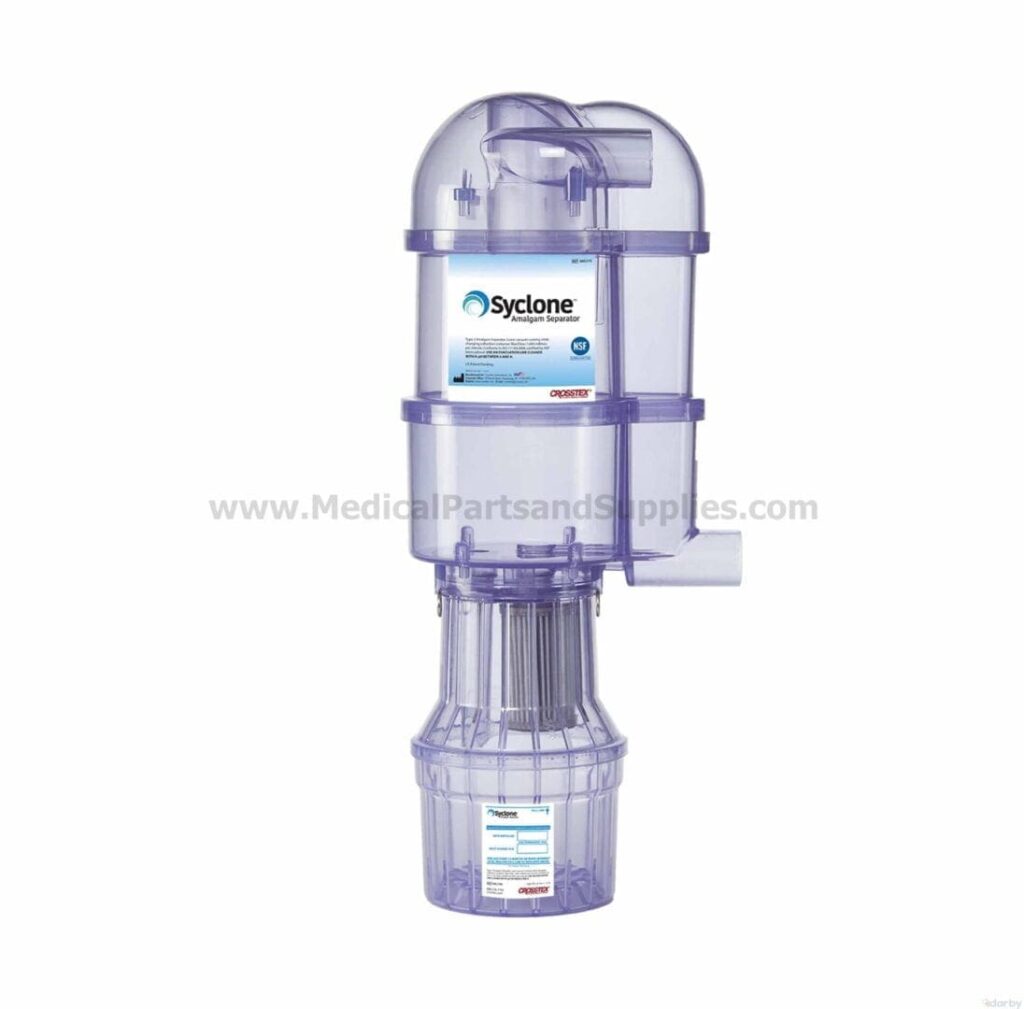

The Crosstex Syclone® Amalgam Separator system delivers over 99% amalgam separation with its cutting edge cyclonic action that produces rapid velocity and waste capture.  It also features high containment capacity for extended service and pump life.   Because the Crosstex Syclone® Amalgam Separator is designed to have fewer parts, there are fewer potential leak and failure points.  The design also offers a clear view of the system in action.  One unit supports up to 10 chairs.   The system supports parallel plumbing, which provides the ability to add more units for additional chairs.

The Crosstex Syclone® Amalgam Separator system features a simple canister recycling program that makes recycling the collected amalgam easy.   Just order a Replacement Canister and have it on hand before the current one is full.  The new canister includes shipping and safe eco-friendly recycling, along with a compliance certificate upon completion.

By July 14th, 2020, dental practices in the U.S. must be in compliance with the Environmental Protection Agency (EPA) final rule on amalgam separators (40 CFR Part 441).  This rule requires either a ISO 11143:2008 certified or ANSI/ADA Standard No.108 certified amalgam separator.  The Crosstex Syclone® Amalgam Separator system is ISO 11143:2008 certified, and when properly installed and maintained, will keep your practice in compliance.  See the Crosstex Syclone® Brochure for details.

Features and Benefits:

• Cutting edge cyclonic action delivers highly efficient >99% amalgam separation

• Simple installation with included mounting bracket and accessories

• Can go up to one year between changes depending on number of chairs in service

• Ambidextrous design meets the need of each individual practice

• High capacity canister extends time between changes

• Easily Changed Replacement Canister

• ISO 11143:2008 certified by NSF International

• Each system supports up to 10 chairs; parallel plumbing option for additional chairs

• System dimensions: 12.7″ W x 9.1″ L x 28.4″ H

• 2 Year Manufacturer’s Warranty

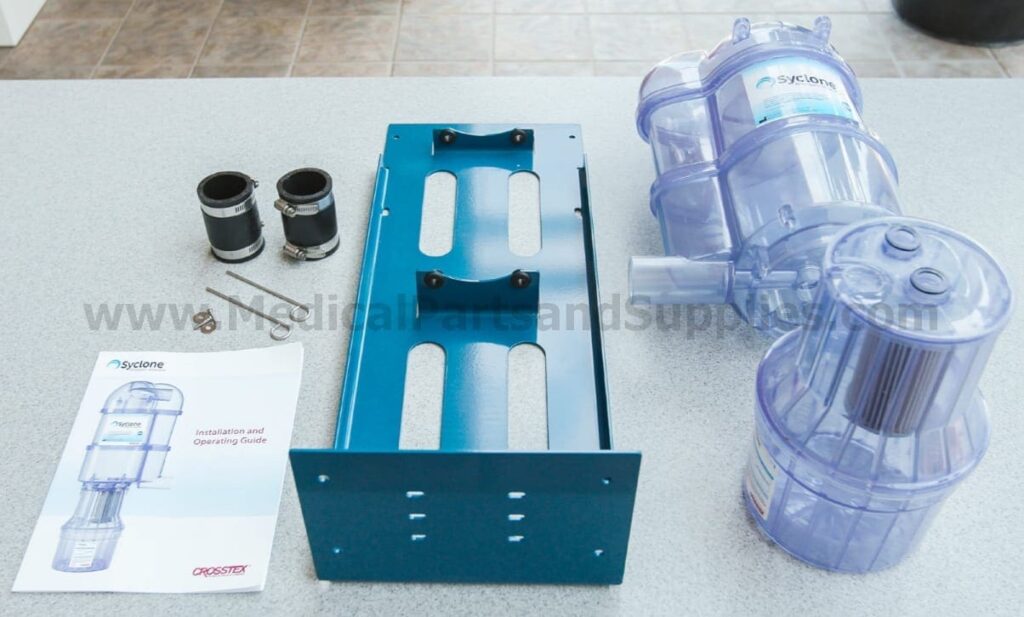

Includes:

• Amalgam Separator Top Chamber

• Plumbing Adapters

• Screws and Washers

• Canister

• Mounting Bracket

• 2 Retaining Pins

Also Available:

• Syclone® Canister Replacement and Recycling Program

• LibertyBOSS® Amalgam Separator

• Amalgam Buckets with Recycling and Shipping Included

• SANI Vac Evacuation Line Cleaner

Documents:

• Crosstex Syclone® Brochure

• Syclone® System Installation and Operating Guide

• Syclone® Replacement Canister Installation Guide

• Syclone® System Best Practices

• Flushing Evacuation Lines Before Installation
