Hand Control for the Midmark-Ritter® 411 (75L), Part MIC168 (OEM Parts 9A73001 and 053-0412-00)
Hand Control for the Midmark-Ritter® 411 (75L) Power Exam Table.
$607.76
Description

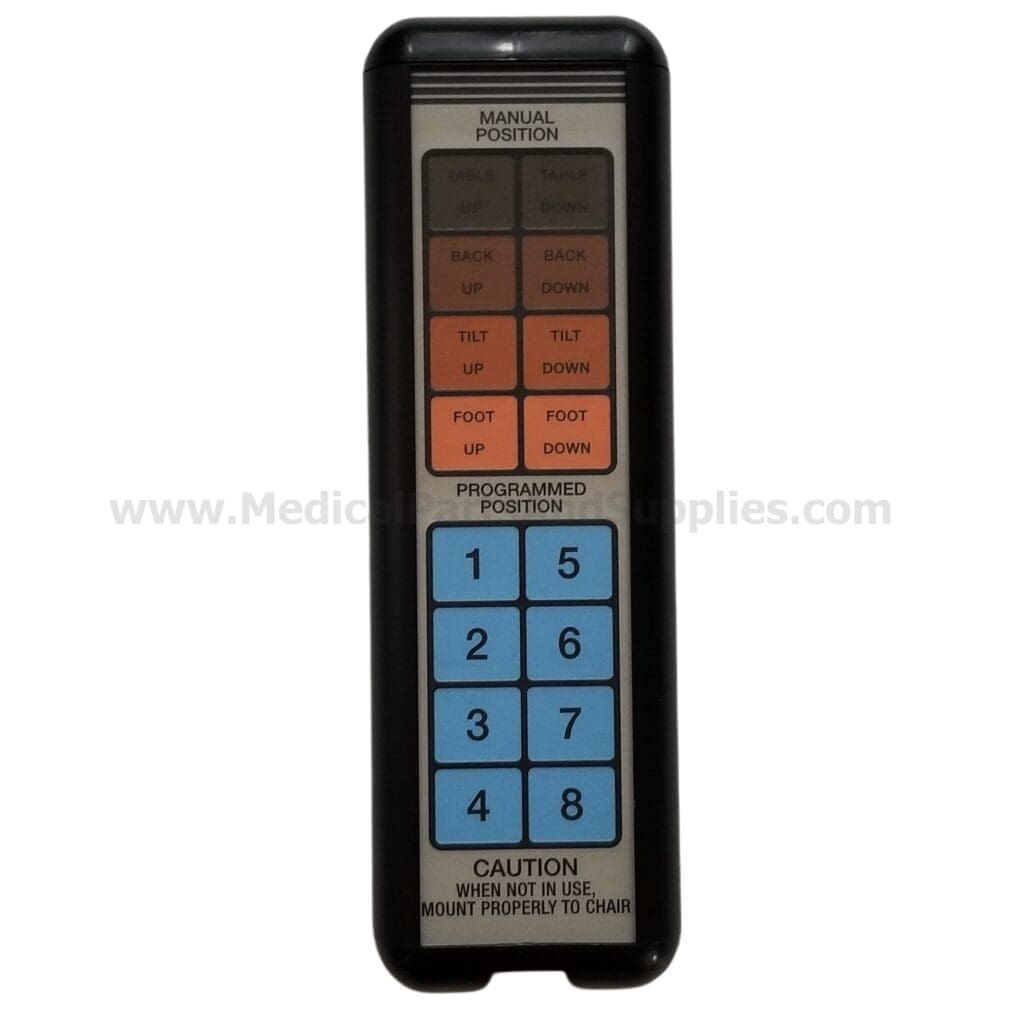

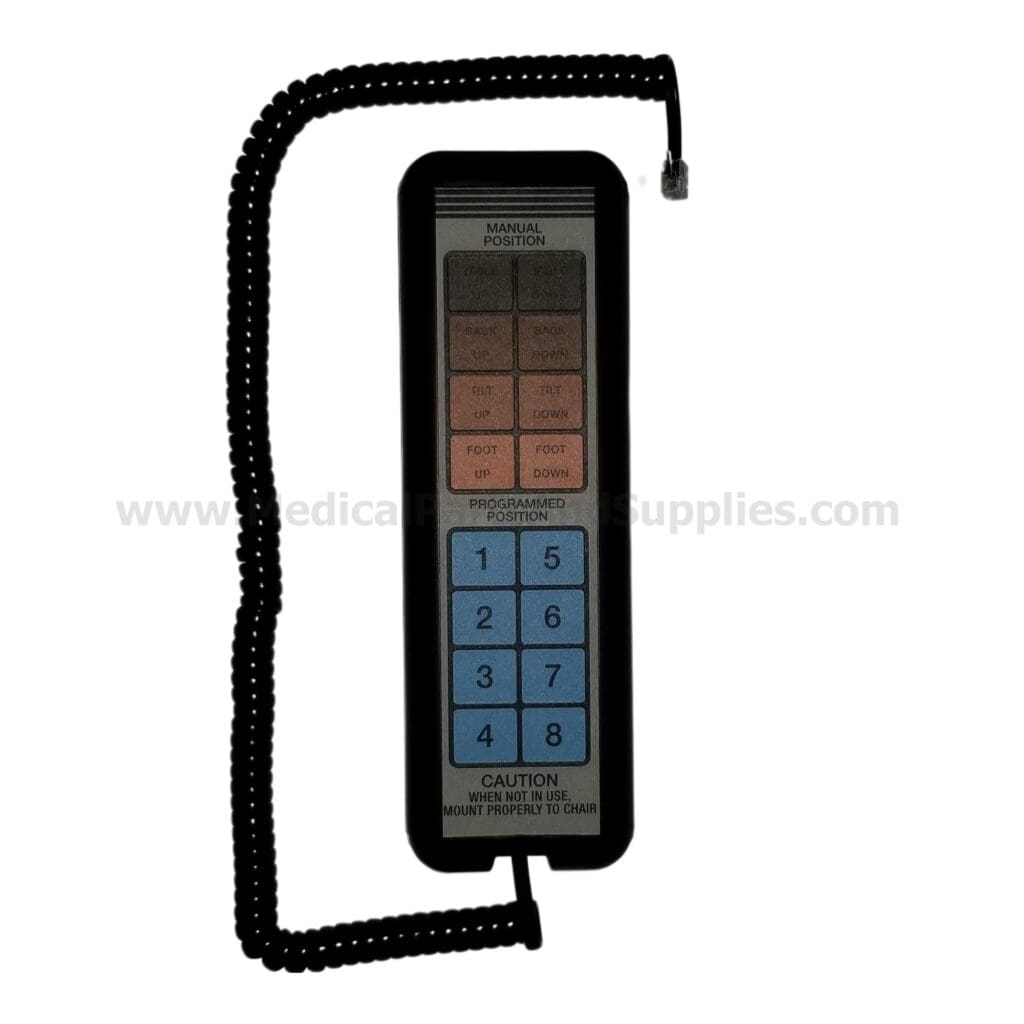

Hand Control
Is your Hand Control missing, damaged or simply not working any more? This control is manufactured specifically to function with the Midmark-Ritter® 411 (75L) Exam Table.
IMPORTANT: This part is not compatible with all Midmark-Ritter® 411 (75L) tables. You must check your model and serial numbers below before buying.

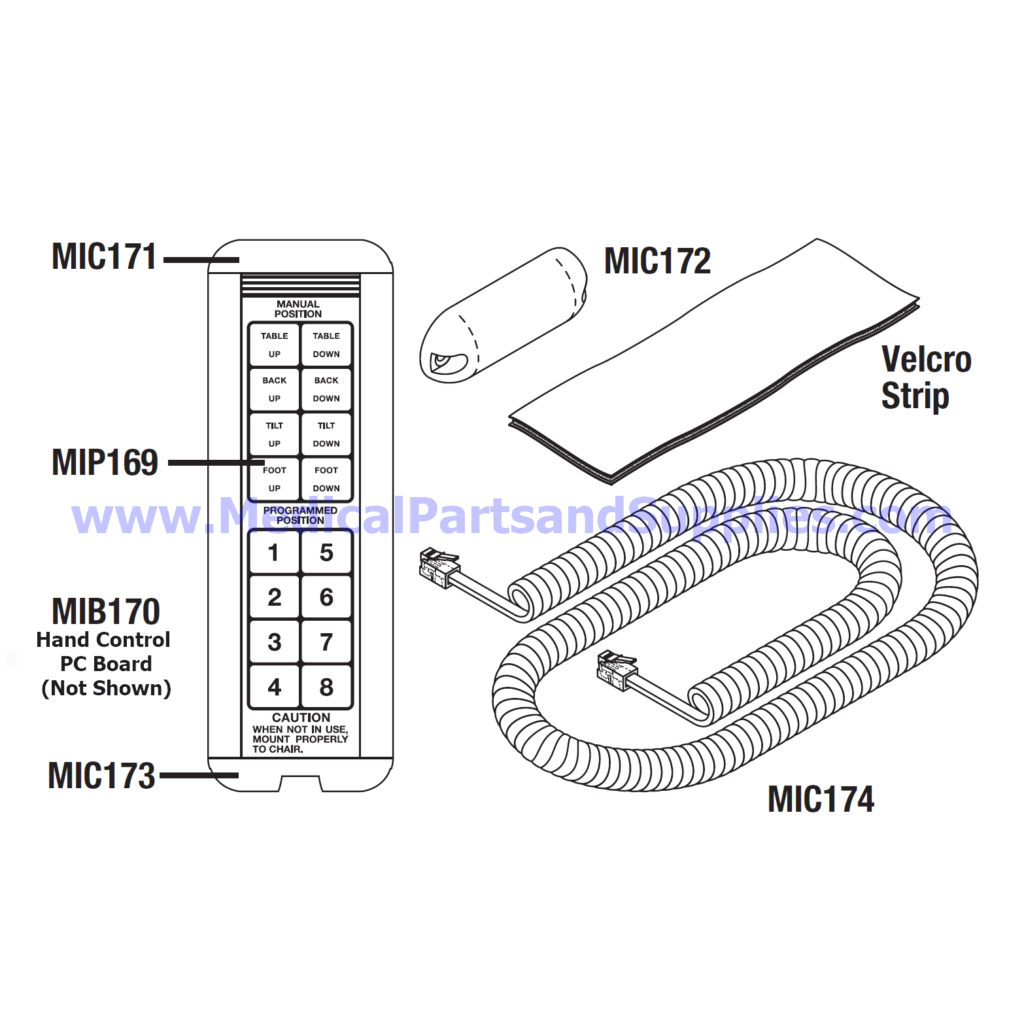

Includes:
-
Both Velcro (Part MIC172) and Clip On (Part MIC171) Top End Caps
-
Bottom End Cap – Part MIC173
-
Coil Cord – Part MIC174
-
Hand Control Panel – Part MIP169
-
Hand Control PC Board – Part MIB170
-
Pressure sensitive adhesive Velcro strip
Also Available:
There are 2 versions of each type of actuator available for this table. The type you need is determined by your model and serial number. See below.
-
Programmable Hand Control (Alternate Model/Serial Range) – Part MIC248
-
Non-Programmable Hand Control (Alternate Model/Serial Range)– Part MIC262
-
Foot Actuator – Part MIA164
-
Back Actuator – Part MIA164
-
Base Actuator – Part MIA165
-
Tilt Actuator – Part MIA165
-
Foot Actuator – Part MIA215
-
Back Actuator – Part MIA216
-
Base Actuator – Part MIA217
-
Tilt Actuator – Part MIA218
Fits Model and Serial Numbers Shown Here:
If this is not a fit for your table, try the part listed above for an alternate range.
Midmark-Ritter® exam tables have a main model number (411 in this case) and a sub-model extension. For example, model 411-011. You must check the main model number, the extension, and the serial number below to see if the part is a fit for your exam table. There is often a range of sub-models that it fits.
Model 411-001 thru 411-008
-
Fits serial numbers with prefixes AV, DJ and DW
Model 75L (411) -001 thru 75L (411) -008
-
Fits serial numbers with prefixes AV, DJ and DW
Model 411 (75L) -001 thru 411 (75L) -008
-
Fits serial numbers with prefixes AV, DJ and DW
Additional information
Weight | 4 lbs |
---|---|
Dimensions | 8 × 12 × 4 in |
