PM-2 Kit for the Sterrad® NX with Leybold Pump, Part SDK076 (OEM Part 100798-02)
PM-2 Kit for the Sterrad® NX Low Temperature Sterilizer.
$3,297.91
Description
PM-2 Kit for Sterrad® NX with Leybold Pump
This PM Kit, also known as the Major PM Kit, should be alternated at six month intervals with the PM-1 Kit. Known as the Minor PM Kit, The PM-1 Kit is also available. See notes below.
Not all Parts are shown. Click the individual links below to see pictures.
IMPORTANT:
You must determine which vacuum pump your unit has before ordering. See picture below. If your unit has the the Leybold pump you need the kit on this page. If it has the Adixen/Pfeiffer pump you need Part SDK003.
Includes:
-
(1) UV Lamp Assembly – Part SDA006
-

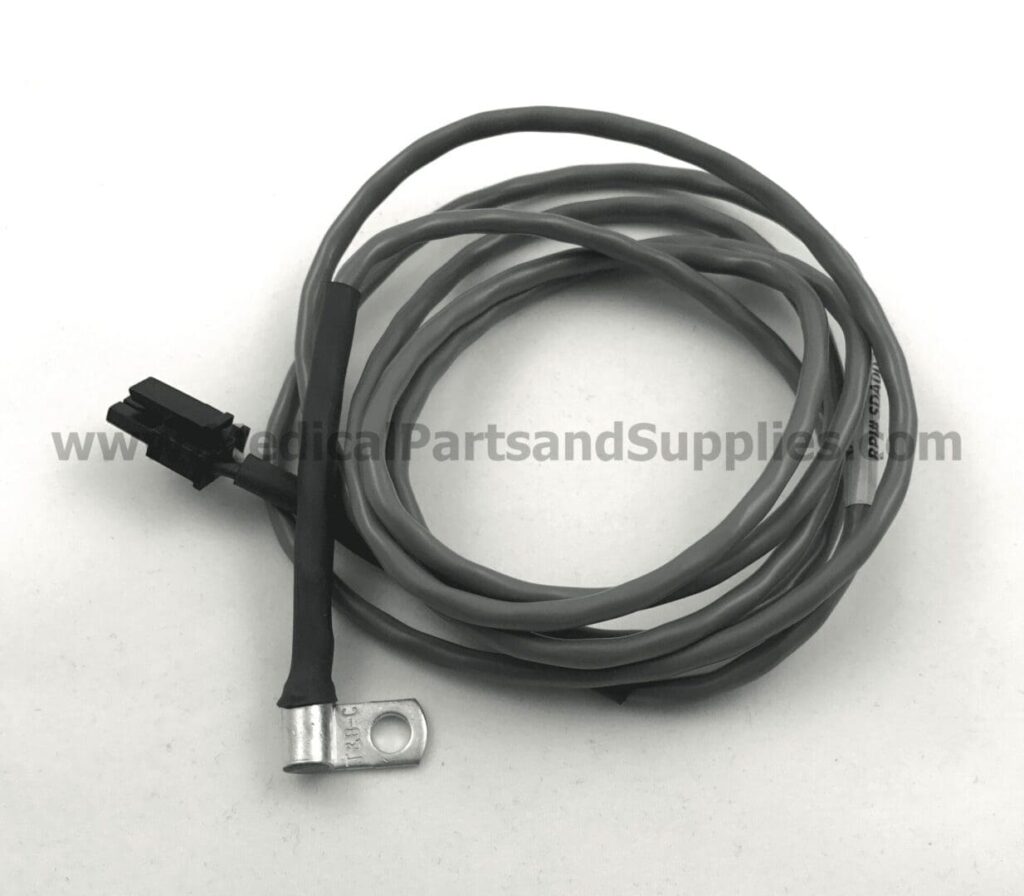

(5) Thermistor Assembly – Part SDA007
-
(1) Catalytic Converter – Part SDC005
-
(1) Air Filter (Base) – Part SDF001
-
(1) Oil Mist Filter (Red) – Part SDF002
-
(1) Conical Screen Filter – Part SDF017
-
(1) Air Filter – Part SDF025
-
(1 pkg of 2) Handle (Shelf Extension) – Part SDH011
-
(1) Feedthru Screw Washer Kit – Part SDK012
-
(1) Optical Window Kit – Part SDK014
-
(1 pkg of 2) Upper Shelf Support – Part SDS008
-
(1 pkg of 2) Lower Shelf Support – Part SDS009
-
(1 pkg of 6) Spacer (Electrode) – Part SDS013
-
(1 pkg of 2) Sleeve Gasket – Part SDS015
-
(1) Chamber Door Seal – Part SDS018
-
(1) Delivery Valve – Part SDV010
-
(1) Sterile Air (HEPA) Filter – Part SSF011
-
(2) Vacuum Pump Oil for Leybold Pump – Part RXL034
-
(1 pc) Absorbent Pad – Part RPP958
-
(18″ lg.) Tubing (Clear 3/8″ ID PVC) – Part RPT646
-
(1) Oil Collection Bottle (1 liter/32 fl. oz.) – Part RPB939
-
(1) Thermal Grease (ThermalCote™) – Part RPG938
Also Available:
-
PM-2 Kit for the Sterrad® NX with Adixen/Pfeiffer Pump – Part SDK003
-
PM-1 Kit for the Sterrad® NX with Adixen/Pfeiffer Pump – Part SDK004
-
PM-1 Kit for the Sterrad® NX with Leybold Pump – Part SDK075
Additional information
Weight | 15 lbs |
---|---|
Dimensions | 35 × 15 × 8 in |
