Description

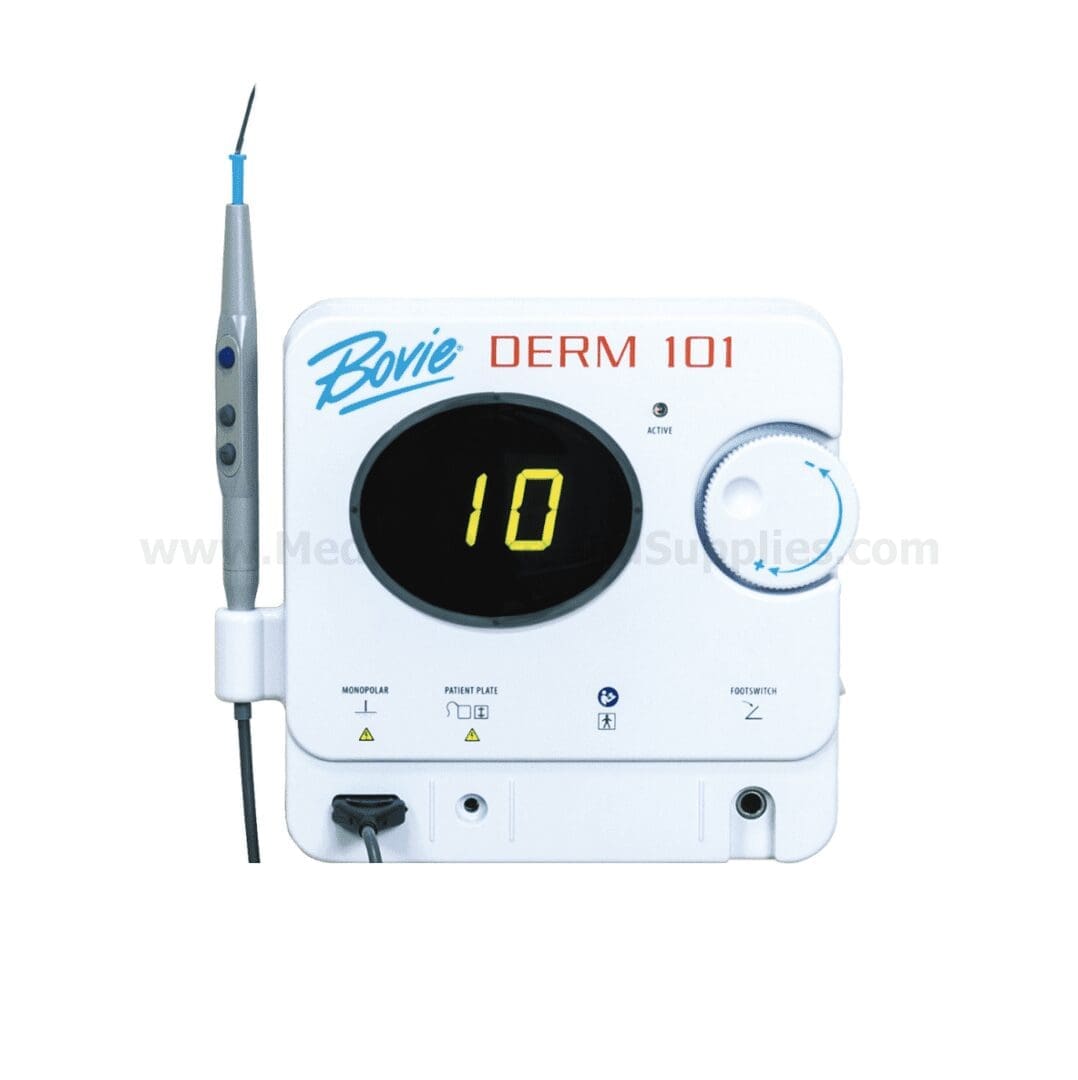

The Bovie® DERM 101 is an economical, 10 watt High Frequency Desiccator.  It is designed to give practitioners the ability to perform in-office, minor skin procedures such as the removal of skin tags, benign lesions and premalignant lesions.  These Bovie® units allow practitioners to provide better patient care in the office, at a sensible price, saving the patient time and money, while increasing their practice revenue.  It is affordably priced to minimize expense and maximize ROI.

Ten (10) watts of monopolar power which are adjustable in 1/10th watt increments.  This thoughtfully designed Electrosurgical Generator allows practitioners the ability to perform minor skin procedures that require desiccation and fulguration with an easy to operate device.  The patented 3-Button Power Control Handpiece (A902) allows the practitioner to adjust power while touching only the Handpiece.  If foot control activation is preferred while using the DERM 101, we offer the A803 Bovie Footswitch (sold separately). No separate Handpiece is required.

The Bovie® DERM 101 arrives packaged complete and ready to use.  By the time the 18 included electrodes (see below) are used, on average, the unit will have been paid for twice.

The Bovie® DERM 101 is backed by an unmatched 4-year manufacturer’s warranty.

Sound great but you need Bipolar Functionality?  The Bovie® DERM 102 is the same unit but with added Bipolar capability.

Bovie® DERM 101 Brochure

Bovie® DERM 101 User’s Guide

Included Bovie® DERM 101 Accessories

The following accessories will arrive with your new Bovie® DERM 101 Electrosurgical Generator (ESU):

• A902 – 3 Button Autoclavable Handpiece and Power Control

• A804 – Sharp Dermal Tips, Non-Sterile (5 ea)

• A805 – Sharp Dermal Tips, Sterile (2 ea)

• A806 – Blunt Dermal Tips, Non-Sterile (5 ea)

• A807 – Blunt Dermal Tips, Sterile (2 ea)

• A806DE – Derm-Elite™ Premium Blunt Dermal Tip, Non-Sterile (2 ea)

• A807DE – Derm-Elite™ Premium Blunt Dermal Tip, Sterile (2 ea)

• A910 – Disposable Handpiece Sheath, Non Sterile (2 ea)

• A837 – Wall Mount Kit

• Medical Grade Power Cord

• User Manual (CD Format)

Available Bovie® DERM 101 Accessories

• SE02 – Smoke Evacuator

• Pencils and Pencil Accessories

• Electrodes

• Return Electrodes

• Stands

• Suction Coagulators

• Footswitches

Additional Features:

• Desiccation

• Fulguration

• 10 watts of monopolar power, adjustable in 1/10th watt increments.

• Universal Power

• One Step Foot Control Setup Utilizing Footswitch A803 (sold separately)

Technical Specs:

• Output Power: 0 – 10 watts (in 1/10th watt increments).

• Output Frequency: 550 kHz.

• Line Voltage: 100 – 240 VAC +/- 10%.

• Line Frequency: 50 – 60 Hz.

• Main Current: 320 mA Max.

• Power Consumption: 28 VA.

Safety:

• Basic Construction: In accordance with EN 60601-1.

• Mode of Operation: Intermittent Operation.

• Output Type: Type BF.

• Duty Cycle: 10 sec on / 30 sec off.

• Main Fuses: T 400 mAL, 250 V.

Dimensions:

• 8.2″ (L) x 7.2″ (W) x 2.7″ (H) (20.8 cm x 18.4 cm x 6.9 cm)

Weight:

• 3 lb (1.4 kg)
