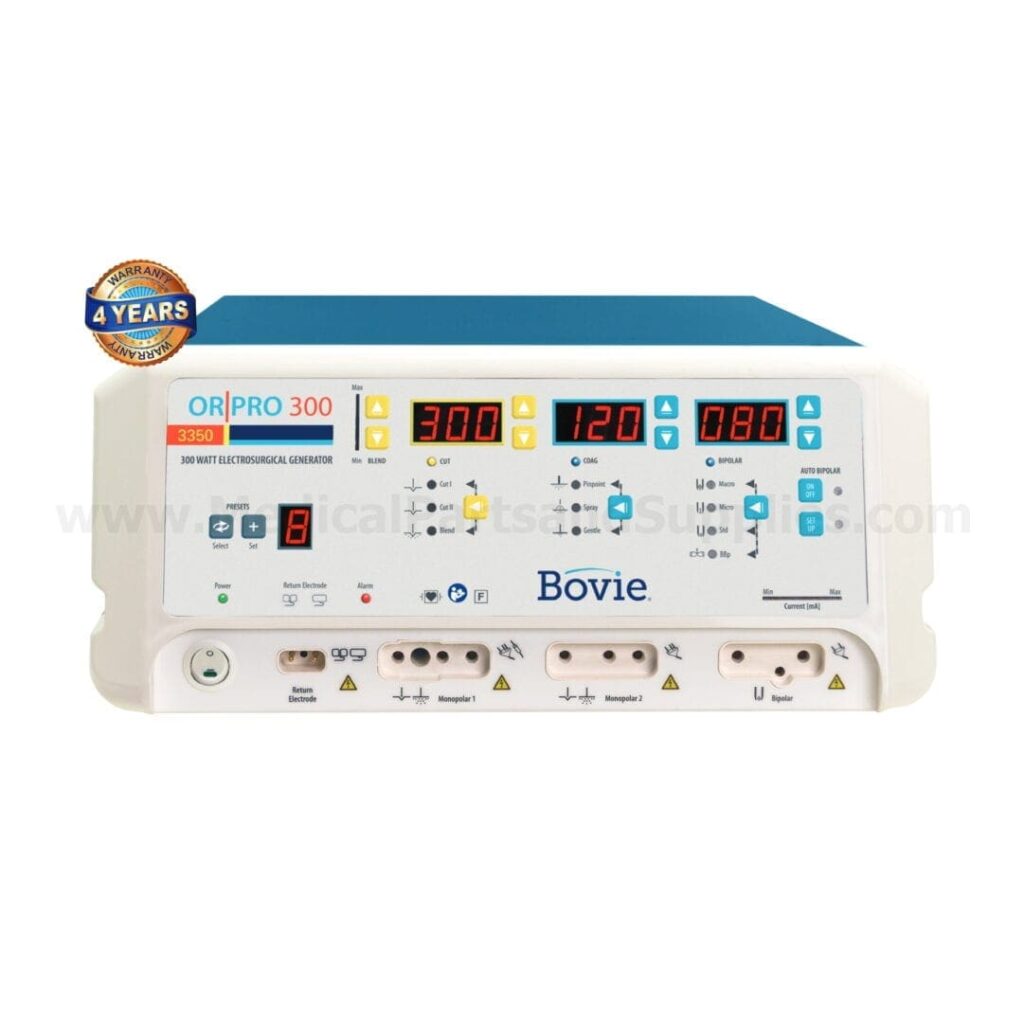

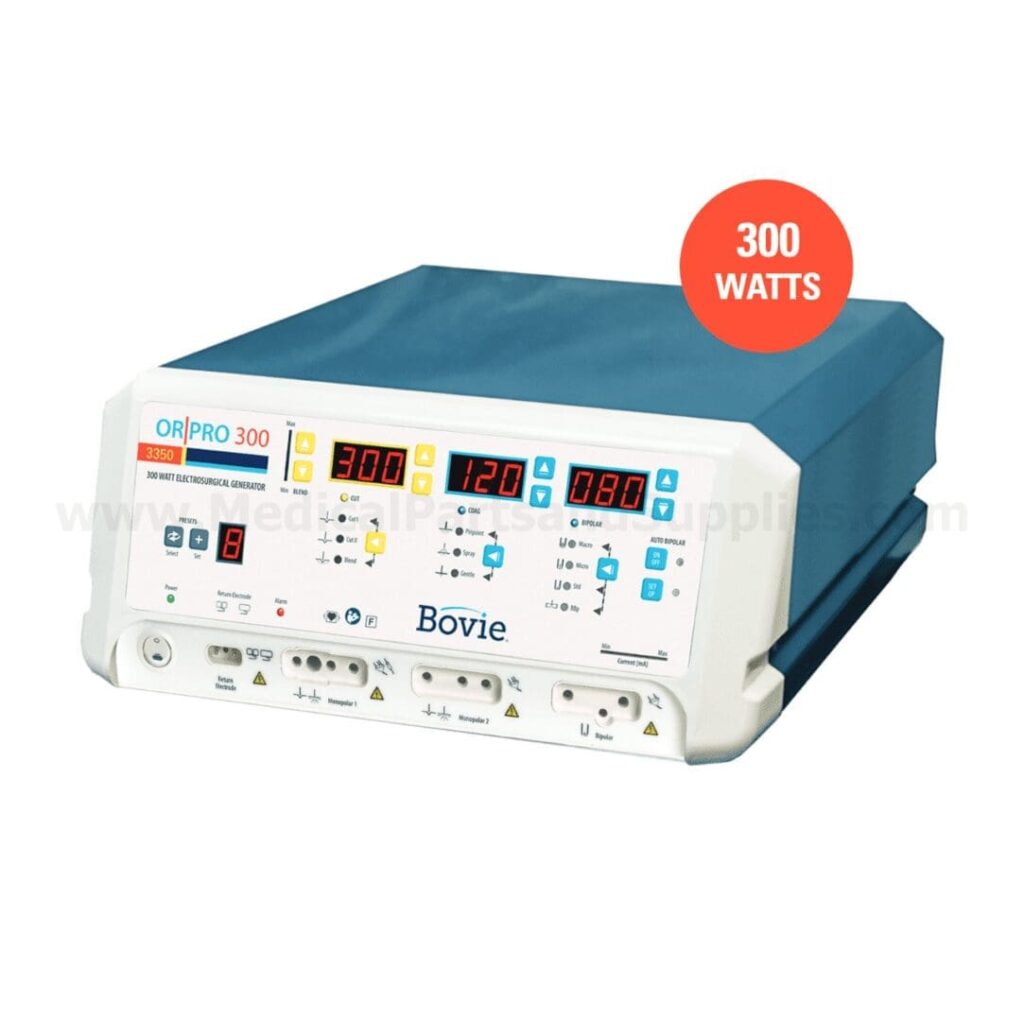

Bovie® OR PRO 300 Electrosurgical Generator (300 Watt ESU), Model A3350
The Bovie® OR PRO 300 meets all operating room procedure performance demands with 13 modes of monopolar and bipolar surgical energy delivery. See details below.
The Bovie® OR PRO 300 was designed to provide a safe, user-friendly Electrosurgical Generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of monopolar and bipolar surgical energy delivery. This includes two (2) modes of Pure Cut, four (4) modes of Blend, three (3) modes of Coagulation.
Bipolar Coagulation and Bovie FCFS™ technology allows the Doctor to move almost effortlessly from Monopolar to Bipolar during procedure. Special modalities include the advanced Bovie® Bipolar, Auto Bipolar options, and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for a variety of surgical applications and user preferences. Ten (10) Doctor Presets allow for quick, uncomplicated setup between procedures.
The Bovie® OR PRO 300 is designed with state of the art safety features including Bovie NEM™ (Neutral Electrode Monitoring) pad sensing technology which monitors the return electrode for optimum patient protection. Bovie DED™ (Digital Error Detection) monitors all functions of the generator to ensure constant safety for the patient, doctor and OR staff.
The Bovie® OR PRO 300 is backed by an unmatched 4-year manufacturer’s warranty.
Included Bovie® OR PRO 300 Accessories
The following accessories will arrive with your new Bovie® OR PRO 300 Electrosurgical Generator (ESU):
110 VAC Hospital Grade Power Cord
220 VAC Hospital Grade Power Cord

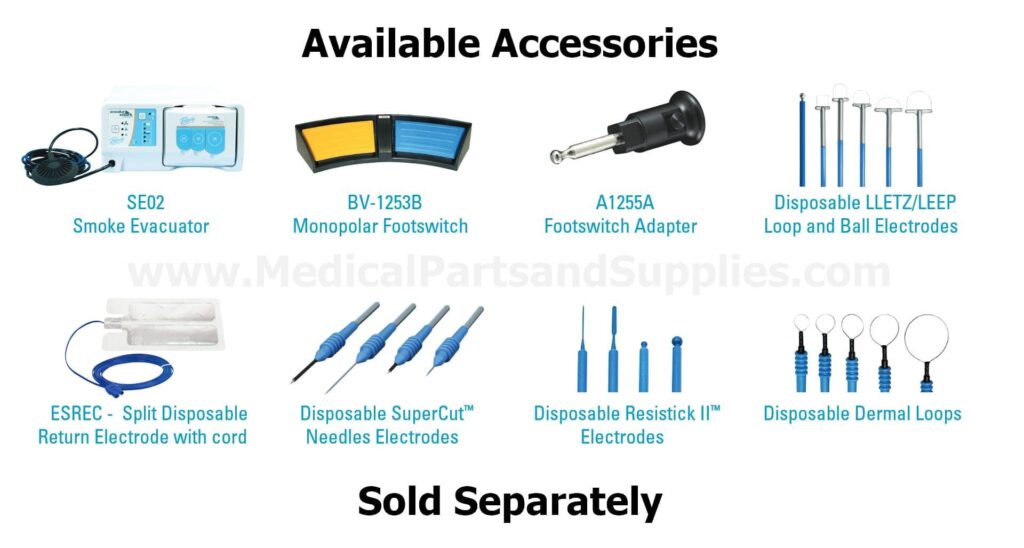

Available Bovie® OR PRO 300 Accessories
SE02 – Smoke Evacuator
Pencils and Pencil Accessories
Bovie® Bipolar (BBp)
Bovie® Bipolar is a pulsing coagulation for quick and powerful coagulation of tissue. The pulsing performance can be tailored specifically to achieve the optimal surgical effect. The feature is compatible with Bovie’s Micro, Macro & Standard Bipolar modes and can be set to surgical preferences for critical procedures.
Auto Bipolar Intuitive Technology
Auto Bipolar offers immediate and simplified tissue coagulation with minimal tissue damage. This feature automatically activates, coagulates and deactivates for precise tissue coagulation and eliminates the need for a footswitch. This feature is compatible with Bovie’s Micro, Macro and Standard Bipolar modes and can be set to surgical preferences for critical procedures.
Surgical Memory Technology
The Bovie® OR|PRO 300 recalls the last used power and mode. The unit’s 10 user presets can recall up to 10 presets and up to 6 bipolar output preferences.
Adjustable Power During Activation
During all activations, the power can be adjusted up or down in variable steps, giving surgeons more control at the surgical site.
Patient Safety Features
BovieNEM™ – This return electrode contact quality monitoring system is designed to minimize patient burns at the return electrode site.
Bovie FDFS™ – The tissue sensing technology measure tissue 5 million times a second and adjusts to varying impedances 5000 times a second for accurate energy delivery.
A visual Ammeter indicates real time current (mA) flowing through the patient.
A general cutting with a standard RF waveform used in open and Endoscopic surgical procedure. Cut I is for use in a wide range of tissue with minimal hemostasis.
Tailored specifically for Laparoscopic procedures, Cut II offers a precisely managed cutting energy that limits output, thereby minimizing the potential risk of capacitive coupling and alternate site burns due to weakened insulation.
Blend (Level 1, 2, 3 & 4)
Blended cutting offers varying levels of hemostasis during a cut procedure providing increased control of bleeding at the surgical application site.
Level 1: 75% Duty Cycle
Level 2: 62.5% Duty Cycle
Level 3: 50% Duty Cycle
Level 4: 37.5% Duty Cycle
A general coagulation mode delivering rapid desiccation effects with minimal tissue damage.
Recommended for hemostasis in highly vascular or large surface areas and for non-contact tissue coagulation to control superficial bleeding. Spray mode permits dual, simultaneous activation of two monopolar accessories with audible dual activation tone alert.
Gentle mode offers more concentrated coagulation than in other modes. When coagulation is necessary in short amounts of time, reduced electrode carbonization is provided.
Bipolar coagulation which gently coagulates tissue for minimal tissue damage reducing carbonization and sticking. Maximum power is 50 watts.
Intense bipolar output allowing for aggressive coagulation, with cut-like effects over a wide range of tissue.
Fine bipolar coagulation for use in extremely gentle and precise surgical applications.
A pulsing bipolar coagulation for quick and powerful coagulation of tissue. Pulsing performance can be tailored specifically to achieve the optimal surgical effect.
Please see the Bovie® OR Pro 300 Brochure for Technical Specifications.
Get a Free Copy of A Surgeon’s Guide to Electrosurgery from Bovie® Medical. Are you a veterinarian? A Free Copy of A Veterinarian’s Guide to Electrosurgery is also available.
|Dimensions||22 × 20 × 11 in|
