Description

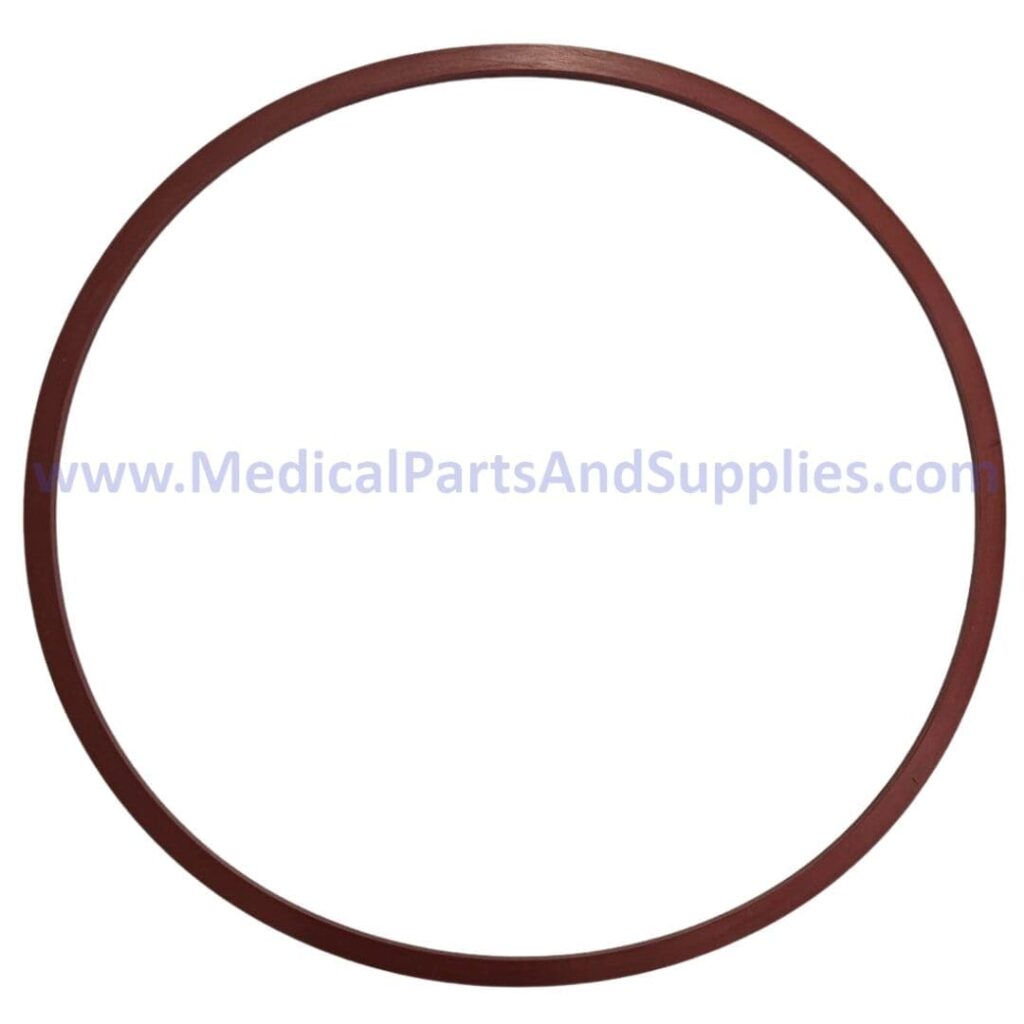

Door Gasket

This Door Gasket should be changed roughly every 6 months. It may need to be changed more or less frequently depending on usage of the autoclave. Everything that needs changed at that time, including the HEPA Filter and Door Bellows, is available in the PM Kit – Part TUK132.

See Installation Instructions Below.

• 15.94″ OD

• Fits: Door of all 3870 or 3850 models

Included In:

• PM Kit with Door Gasket – Part TUK132

Also Available:

• PM Kit with Door Gasket – Part TUK132

• HEPA Filter – Part RPF644

• Cleaner for Tuttnauer® Autoclaves – Part TUC094

• Autoclave Cleaning Kit – Part RPK791

Door Gasket Installation Instructions:

Remove the old door gasket. Clean the gasket channel in the door and chamber face. The door gasket has a slight taper. The wider side should be inserted into the door first. Although not absolutely necessary, it may help to lubricate the gasket with soapy water before inserting into the gasket channel.

Install the gasket using the “North-South-East-West” method. Push it into the channel first at the North position (top), then the South (bottom), then East (right), then West (left). Then fill in everything in between. Make sure that the gasket is flush without any bumps or gaps. Not using this method can result in the gasket being stretched to the point where there is excess that will not fit into the channel.

This part fits all models listed below. Please navigate to or use the search box to find the part page that is specific to your model for details.

Fits: 3850E, 3850EA, 3850M, 3870E, 3870EA, 3870EHS, 3870M
